Steam Filtration for Reliable Process Safety

Steam is often used where hygiene, product protection and equipment uptime matter. A correct steam filtration setup removes particles before they reach critical points of use. That protects product quality, valves, sterilizers, filling lines and clean process equipment.

View steam filtration range See sizing table

Cleaner steam Removes rust, scale and process particles before critical use points.

Better equipment protection Helps reduce fouling, erosion and contamination risk in downstream equipment.

Why use steam filtration

What steam filtration improves in practice

Direct process benefits

Protects product quality, by reducing the risk of particles entering sterile or hygienic processes.
Protects equipment, less particulate load on valves, traps, heat exchangers and sterilizing points.
Supports stable operation, cleaner steam means fewer unwanted interruptions and less downstream cleaning.
Improves compliance, useful where clean utility design and documented filtration matter.
Extends service intervals, lower contamination load can reduce maintenance pressure on critical equipment.

Typical steam filtration setup logic

Choose filtration grade, 1, 5 or 25 µm based on product risk and process sensitivity.
Select housing by pressure, use P-DD up to 16 bar, use P-ED2 above 16 bar and up to 25 bar.
Size from steam flow, use the flow table and apply correction factor K1 for operating pressure.
Match housing and element size, each NP-GS element size maps to a housing size and connection.
Keep differential pressure under control, the reference flow table is based on 0.5 bar differential pressure at 1 bar saturated steam.

Steam filtration is presented by Nordic Filtration as relevant for product quality, reliability and equipment protection in industrial process applications.

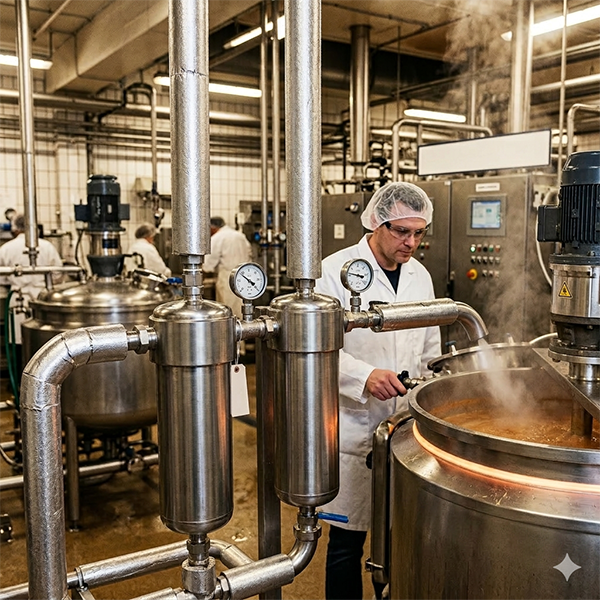

Steam filtration housing for industrial use

Applications

Where steam filtration is commonly used

Steam filtration is used where clean steam supports product safety, controlled sterilization or stable process performance.

Food and beverage production, especially where steam contacts equipment or packaging zones.
Pharmaceutical and biotech processes, including sterile support utilities and clean process lines.
Dairy and brewery plants, where hygiene and repeatable cleaning processes matter.
Chemical and process industry, where particles in steam can affect equipment performance and product quality.
Autoclaves, sterilizers, SIP duties and clean utility distribution points.

Nordic Filtration positions steam filtration for food, pharmaceutical and industrial process environments where contaminants in steam must be removed before critical use.

Selection guide

Steam filter sizing table, housing choice and correction factor

Use the table below as the practical selection base. The listed flow values are reference capacities at 1 bar, 121°C saturated steam and 0.5 bar differential pressure. For higher operating pressure, apply the correction factor table shown underneath.

Selection topic	Recommended approach	Notes
Filtration grade	1 µm, 5 µm, or 25 µm	Choose based on process sensitivity and particle load.
Housing up to 16 bar	P-DD	Preferred housing for steam filtration where operating pressure stays at or below 16 bar.
Housing above 16 bar	P-ED2	Use when pressure goes above 16 bar and up to 25 bar.
Element family	NP-GS steam filter elements	Match element size to housing size and required steam flow.
Pleated process option	Pleated process filter with Code 7 connection	Added below as a complementary cartridge option from the Nordic Filtration range.

Model	Flow, kg/h			Connection	Filter Housing	Element Size
Model	1 µm	5 µm	25 µm	Connection	Filter Housing	Element Size
NP-GS 0006	18	67	90	DN10	P-DD 0006	0310
NP-GS 0009	25	96	125	DN10	P-DD 0009	0410
NP-GS 0012	28	107	143	DN15	P-DD 0012	0420
NP-GS 0018	37	141	185	DN20	P-DD 0018	0520
NP-GS 0027	48	181	241	DN25	P-DD 0027 / P-ED2 0027	0525
NP-GS 0036	70	266	352	DN32	P-DD 0036	0725
NP-GS 0048	102	385	510	DN40	P-DD 0048 / P-ED2 0048	0730
NP-GS 0072	150	565	755	DN50	P-DD 0072 / P-ED2 0072	1030
NP-GS 0108	235	875	1170	DN50	P-DD 0108 / P-ED2 0108	1530
NP-GS 0144	317	1185	1580	DN65	P-DD 0144 / P-ED2 0144	2030
NP-GS 0192	495	1850	2450	DN80	P-DD 0192 / P-ED2 0192	3030
NP-GS 0288	880	3320	4400	DN80	P-DD 0288 / P-ED2 0288	3050

Correction factor for operating pressure

Operating pressure, bar	1	3	5	9
Saturated steam temp., °C	121	140	160	180
Correction factor K1	1	2	3	5

Reference note: flow rate table is based on 1 bar saturated steam at 121°C and 0.5 bar differential pressure.

Simple selection flow Pick grade, pressure and flow

From our product range

Steam filtration products and related options

To see more of our specific products within steam and vapor filtration, please find the links below.

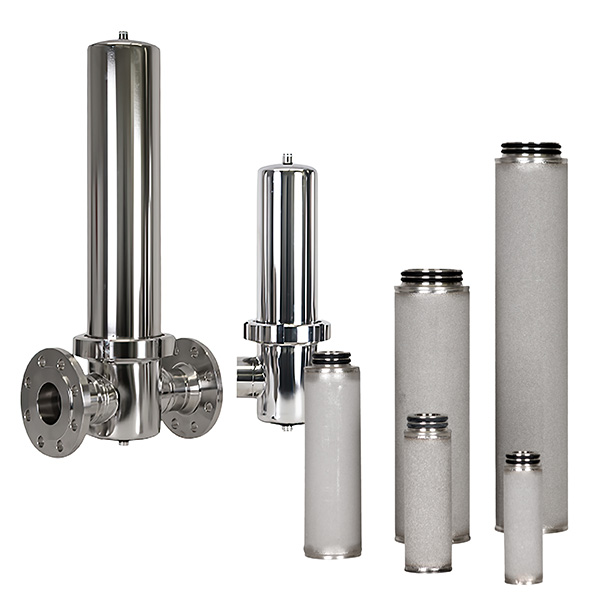

Steam Filtration

Main category page for steam filtration solutions, process support text, filters and housings.

View category

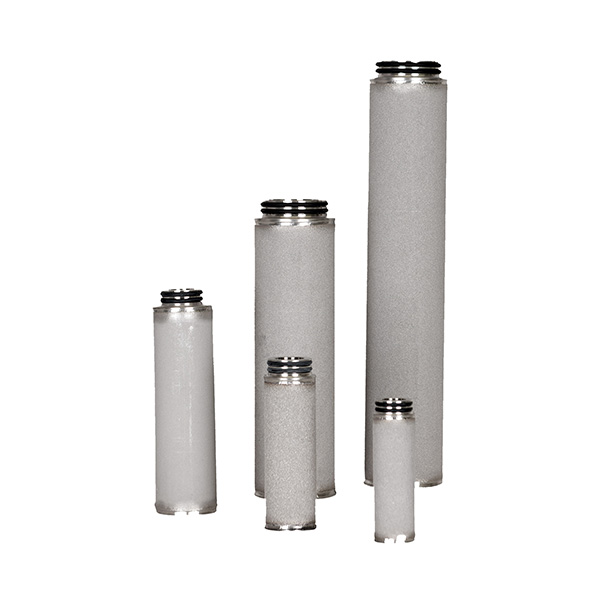

Steam filtration filter elements category

Steam Filter Elements

Filter element range for steam filtration and related sterile process duties.

View elements

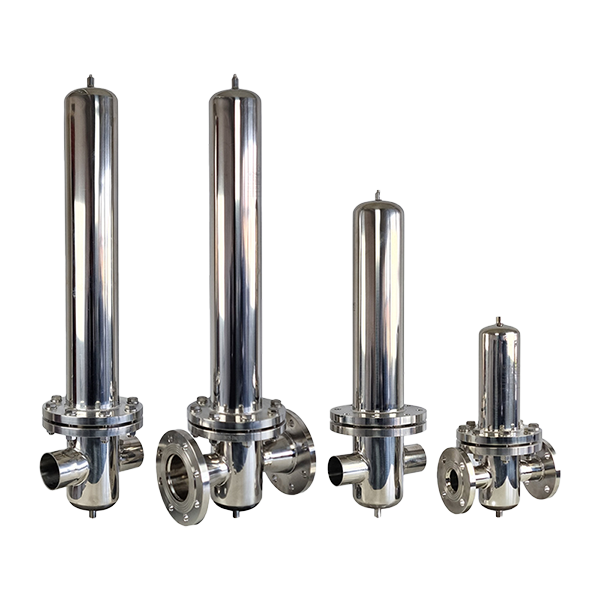

Steam Filter Housings

Housing category for steam filtration with stainless steel housing options for process duty.

View housings

Practical notes

Explaining steam filtration in short

Why filtration of steam?

Cleaner steam at the critical point.
Lower contamination risk.
Better protection of downstream assets.
More stable hygienic production.

How to select filter & housing

Start with micron rating, 1, 5 or 25 µm.
Check operating pressure.
Select P-DD or P-ED2 by pressure class.
Use the table to match flow, connection and element size.

Important specification note

P-DD max pressure, 16 bar.
P-ED2 max pressure, 25 bar.
Reference flow based on 121°C saturated steam.
Apply K1 correction factor for higher pressure duty.
