Ultrafiltration

What is Ultrafiltration?

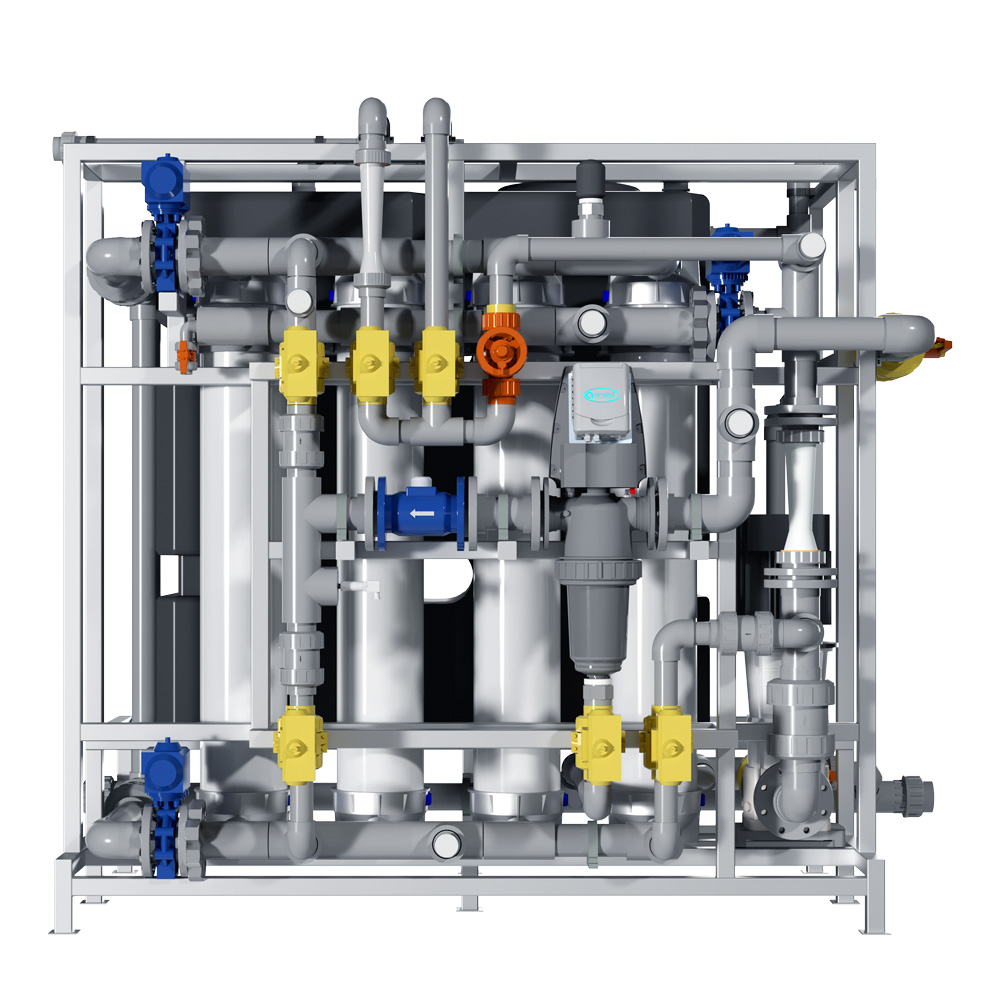

Ultrafiltration is a type of membrane filtration that uses a semi-permeable membrane to separate suspended solids, bacteria, viruses, and other macromolecules from water. Unlike conventional filtration methods, Ultrafiltration operates with a pore size range typically between 0.1 to 0.001 microns. This extremely fine level of filtration means it can remove much smaller particles than microfiltration but is not as fine as nanofiltration or reverse osmosis.

The process is driven by hydrostatic pressure, which forces water through the membrane while retaining larger particles on the feed side. This effectively produces a clean permeate (filtered water) and a concentrated retentate (the rejected impurities).

How Ultrafiltration differs from other membrane technologies

It's helpful to understand where Ultrafiltration fits within the spectrum of membrane technologies we offer, such as our reverse osmosis systems and other water treatment solutions.

Here's a quick comparison:

What can you achieve with Ultrafiltration?

Integrating Ultrafiltration into your water treatment process can unlock significant benefits, enhancing both operational efficiency and product quality. At Nordic Filtration, we leverage UF technology to help businesses achieve specific objectives:

• Enhanced Pre-treatment for RO Systems: Ultrafiltration is an excellent pre-treatment step for our reverse osmosis systems. By removing suspended solids, colloids, and microorganisms, UF protects the more sensitive RO membranes from fouling, extending their lifespan and reducing cleaning frequency.

• Improved Product Quality: In industries such as food and beverage, pharmaceuticals, and biotechnology, the quality of water directly impacts the final product. Ultrafiltration ensures that process water is free from undesirable particles, bacteria, and viruses, leading to a purer and more consistent end product.

• Wastewater Treatment and Reuse: Ultrafiltration provides an effective method for treating industrial wastewater, making it suitable for discharge or even reuse within your facility. This contributes to sustainability efforts and can significantly reduce operational costs associated with fresh water intake and wastewater disposal.

• Drinking Water Purification: For municipal or private water supplies, Ultrafiltration can reliably remove pathogens and turbidity, producing safe, clean drinking water that meets stringent regulatory standards.

• Reduced Chemical Usage: The physical barrier of an Ultrafiltration membrane often reduces the need for chemical coagulants or disinfectants, leading to a more environmentally friendly and cost-effective treatment process.

What does Ultrafiltration remove from water?

The effectiveness of Ultrafiltration lies in its ability to target and remove a broad spectrum of impurities. This makes it a versatile solution for various water treatment challenges. Specifically, Ultrafiltration systems from Nordic Filtration are designed to remove:

• Suspended Solids: Tiny particles, silt, and other matter that cause turbidity in water are effectively blocked by UF membranes.

• Bacteria: The small pore size of UF membranes is sufficient to remove almost all types of bacteria from water, significantly improving microbiological quality.

• Viruses: While some viruses can be extremely small, Ultrafiltration membranes are generally effective at removing most common viruses, providing a strong barrier against viral contamination.

• Colloids: These are stable dispersions of fine particles that are larger than molecules but too small to be seen with the naked eye. UF excels at removing colloids that often cause membrane fouling in downstream processes.

• Endotoxins: In pharmaceutical and medical applications, endotoxins can be a major concern. Ultrafiltration can effectively remove these pyrogens, crucial for sterile processes.

• Proteins and Macromolecules: In various industrial and biochemical processes, UF is used for separation and concentration of proteins and other large organic molecules.

For applications where even finer filtration is required, such as the complete removal of dissolved salts, we would integrate Ultrafiltration as a crucial pre-treatment step for our reverse osmosis systems, which excel at removing ions and achieving very high purity levels with salt reduction percentages of 98-99%.

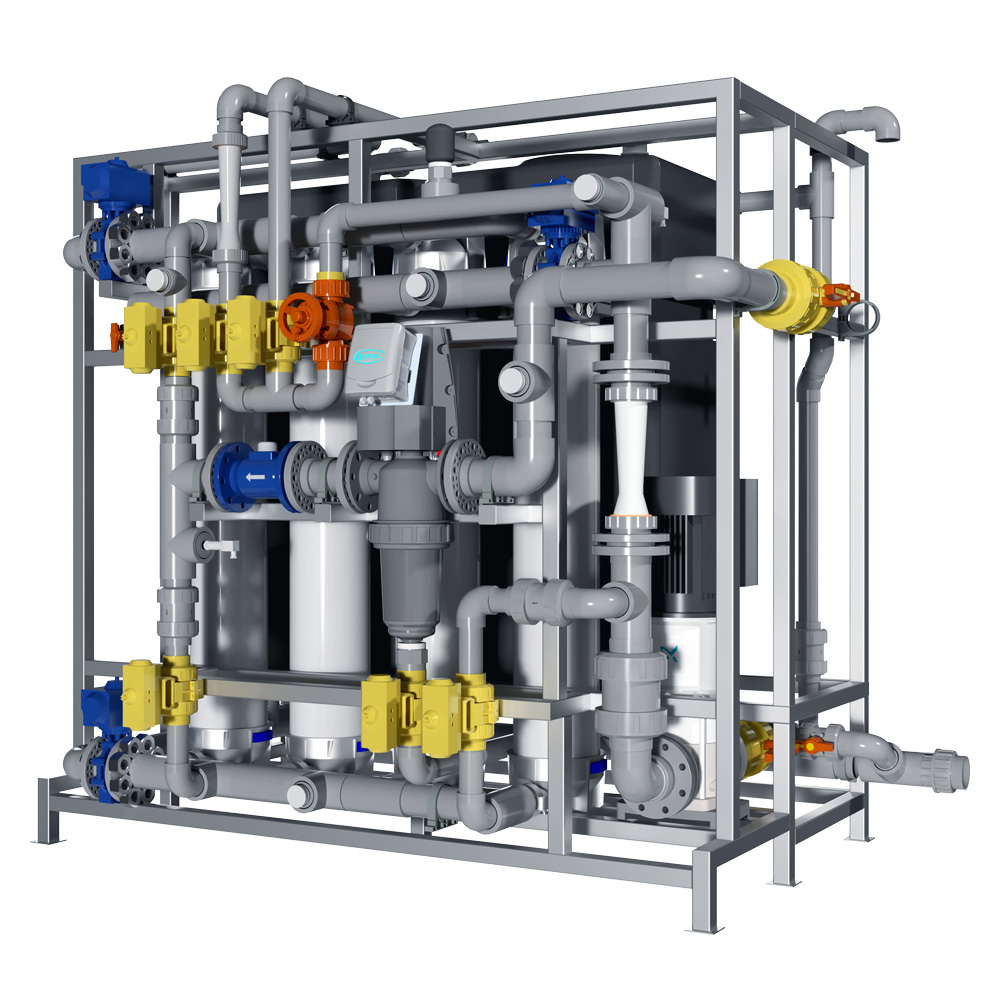

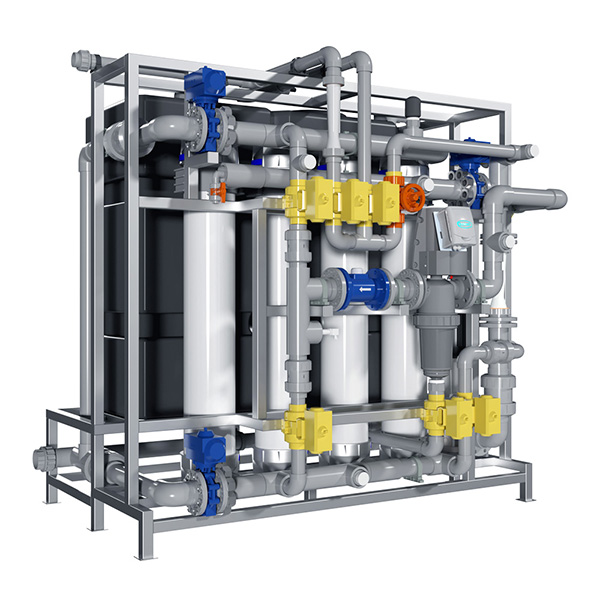

Our Ultrafiltration solutions at Nordic Filtration

At Nordic Filtration, we pride ourselves on offering comprehensive and tailored filtration solutions. When it comes to Ultrafiltration, we combine our expertise with high-quality components to deliver systems that meet your specific industrial needs. Our offerings extend beyond just the UF membranes themselves, encompassing the entire system design, installation, and ongoing support.

We work closely with you to assess your water quality requirements and recommend the most suitable Ultrafiltration setup. This might involve integrating UF as a standalone purification step or as part of a multi-stage system, potentially alongside our water softeners to tackle lime scale or liquid filters for other specific contaminants.

Our commitment to optimizing production processes, improving product quality, and maintaining high standards of hygiene and safety is at the core of our Ultrafiltration solutions. We aim to provide durable, safe, and environmentally friendly systems that contribute to your operational success.

Implementing Ultrafiltration in your process

Choosing and implementing the right Ultrafiltration system involves several considerations. Our team at Nordic Filtration is here to guide you through each step, ensuring a seamless integration into your existing infrastructure. We consider factors such as:

• Feed Water Quality: Understanding the characteristics of your source water is crucial for designing an effective Ultrafiltration system.

• Desired Permeate Quality: We'll help you define the purity levels required for your specific application.

• Flow Rates: Whether you need continuous high-volume treatment or batch processing, we can size the Ultrafiltration system to meet your demand.

• Footprint and Space: Our solutions are designed with practical considerations in mind, ensuring they fit within your facility.

• Operational Costs: We focus on energy-efficient designs and long-lasting components to minimize your total cost of ownership.
